Valve bag 25Kg Super fine powder packing scale machine

  • 1
  • 2

Brand Name : Sanhe

Model Number : 25Kg Super fine powder packaging machine

Certification : ISO9001:2015, CE

Place of Origin : Suzhou

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 Sets Per Month

Delivery Time : 90 days

Packaging Details : Wood pallet

Product Name : 25Kg valve bag packing machine

Function : Packing

Production Capacity : 30 Sets Per Month

Controls : PLC

Powder : Electric

Origin : Suzhou

Type : Weighing Filling Machine

Feed Cylinder Structure : Single-Room Feeding

Contact Now

Valve bag 25Kg Super fine powder packing scale machine

95% of China Silica ( white carbon black ) factory use our packing machine.

What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.

Function table of our valve bag weighing filling packing machine :

DCS-25PV1(1)

(exhausting type)

DCS-25PV1(2)

(screw type)

DCS-25PV1(3)

(airflow type)

DCS-25PV1(5)

(horizontal impeller)

DCS-25PV1(6)

(vertiacl impeller)

Scope of application

Suitable materials

Powder and ultrafine powder of good Air affinity

Powder and thin granule

Powder and thin granule

Powder and ultrafine powder

Powder and ultrafine powder

Suitable packing container

 Upper and lower spiral air supply single screw air flow Horizontal impeller Vertical impeller

Technical parameters

Weighing range(Kg)

 10-50 10-50 10-50 10-50 10-50

Packing speed(bag/H)

 30-180 30-120 30-200 30-250 30-250

Packing Accuracy

Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)

Control function

Automatic tare

 ○ ○ ○ ○ ○

Automatic quick and slow feeding

 ○ ○ ○ ○ ○

Automatic free fall compensation

 ○ ○ ○ ○ ○

Automatic minus deviation

 ▲ ▲ ▲ × ×

Automatic over weight alarms

 ○ ○ ○ ○ ○

Automatic self diagnosis failure

 ○ ○ ○ ○ ○

Manual/Automatic mode conversation

 ○ ○ ○ ○ ○

Communication port

 ▲ ▲ ▲ ▲ ▲

Regulatory function

Manual adjusting the height of bag

 ○ ○ ○ ○ ○

Suit for open and valve bag function

 ▲ ▲ ▲ ▲ ▲

Important auxiliary function

Blow bag function in advance

 ○ ▲ ○ ○ ○

Arch break function of hopper

 ○ ○ ○ ○ ○

Vibration at the bottom of the bag

 ○ ○ ○ ○ ○

Powder protection

Inflatable seal

 ▲ × ▲ × ×

Negative pressure dusting(not contain duster)

 ○ ○ ○ ○ ○

Automatic blow valve mouth

 ○ × ○ ▲ ▲

Safety protection

Electrostatic grounding

 ▲ ▲ ▲ ▲ ▲

ionic wind remove static

 ▲ ▲ ▲ ▲ ▲

Stop packing when lose power

 ○ ○ ○ ○ ○

Emergency stop

 ○ ○ ○ ○ ○

Ex-proof

 ▲ ▲ ▲ ▲ ▲

Mark: “○”is standard function；“▲”is choose function ；“×”is not has function

main features:

*valve bag packing for Powder and ultrafine powder.

*Can be twin-type packer

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.

please tell us the following, so that we can make the proper plan for you:

a. what the powder or partical will to be packed ?
b. how many kg per bag ?
c. how many bags per hour ( packing speed )?
d. what is the weight +- tolerance ? +- how many gram per bag ?


Product Tags:

25Kg Carbon Black Packing Machine



PLC Carbon Black Packing Machine



0.8MPa Weighing Type Filling Machine


Wholesale Valve bag 25Kg Super fine powder packing scale machine from china suppliers

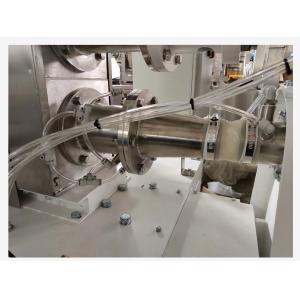

Valve bag 25Kg Super fine powder packing scale machine Images
